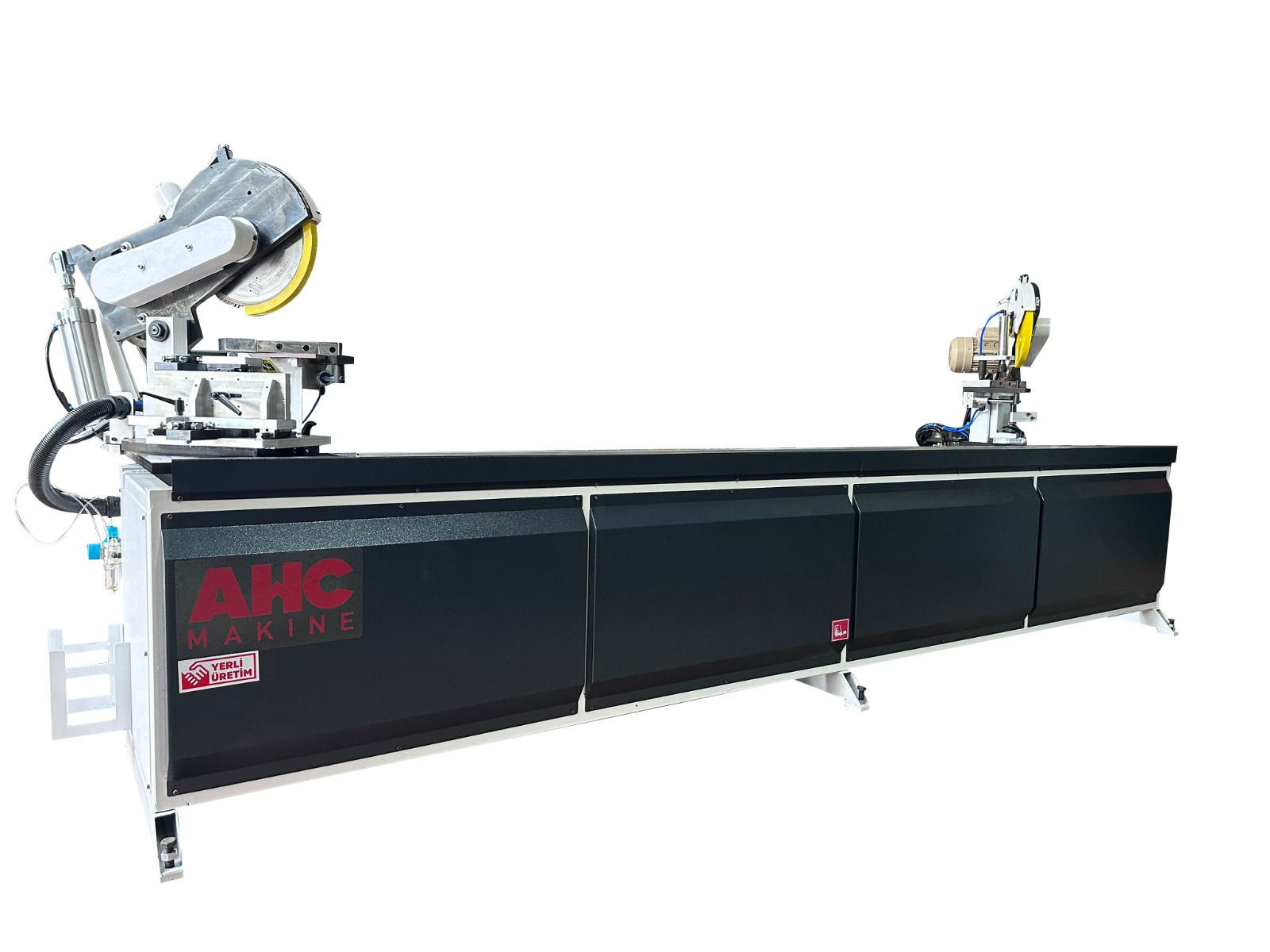

ALU 300 is designed to cut aluminium and PVC profiles in series at double 45 degree angle and to drill connection holes. One operation takes about 10-15 seconds. The machine securely fixes the part with pressure holders. The cutting saw and drilling unit are pneumatic (automatic) moving. The part size can be adjusted easily and accurately with a precision measuring ruler. The left cutting group is fixed and the right cutting group is mobile. The mobile group can move easily with linear guides with lubrication unit. Optionally, precise and fast measurements can be obtained with servo controls.


Saw Diameter
Ø300
Cutter Motor Speed
3000 rpm
Cutter Saw Speed
3000 rpm
Cutter Motor Power
1,5 hp
Cutting Saw Motor Power
1,1 kW
Min. Max. Cutting Length
370-2400 mm
Max. Cutting Width
120 mm
Max. Cutting Height
50 mm
Voltage
380 V 50 hz
Machine Package Size
1000-3400-1600 mm
Weight
465 kg
Working Time for Single Piece
10-15 sec.
Servo Control
Optional
